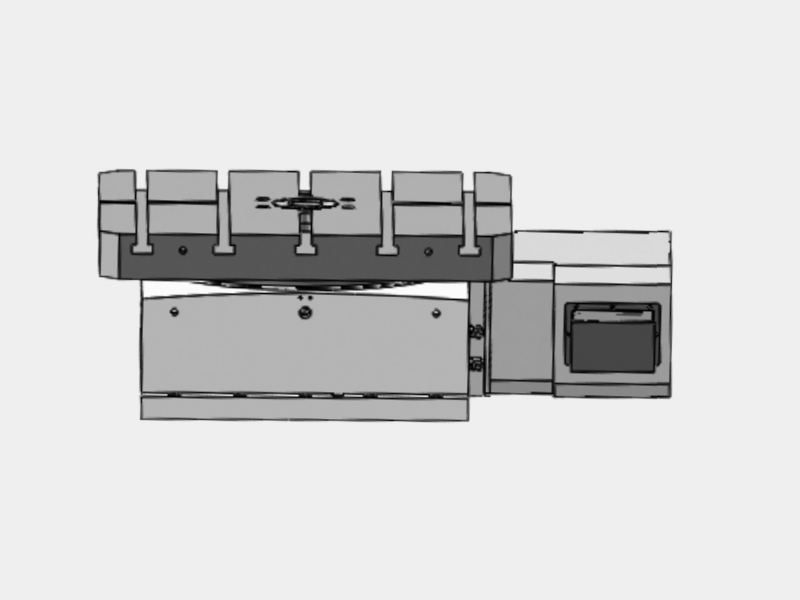

规格型号 Specification and model	HHF-630W
工作台尺寸Workbench size	500x500mm
机台总高度Total height of the machine	290mm
基准孔径Reference aperture	φ50mm
盘面T型槽宽T-shaped slot width on the panel	18mm
最小设定角度Minimum setangle	1°
齿数比Gear ratio	1:120
端齿盘直径End gear disc diameter	φ358mm
锁紧状态允许切削力 Locking state allows cutting force	FXL 5760 N.m
	FXL 5000 N.m
	F 25000 N
锁紧扭矩Locking torque	1000Kg.m
伺服电机(用户自备) Servo motor (user provided)	FANUC	MITSUBISHI	SIEMENS
	αiF12 β iS22	HF204S	1FK7083
工作台最高转速(马达3000rpm) Maximum worktable speed (motor 3000rpm)	25
涡轮允许扭矩Turbine allowable torque	1500N.m
驱动方式驱动压力Diving modeldrvingpressure	油压35kgf/cm²
重复精度Repetitive accuracy	±1"
分度精度Indexing accuracyy	± 4"
容许负载容量(平均负载) Allowable loadcapacity(average load)	600kg
旋转工作台重量(不含伺服马达) Weight of rotating worktable (excluding servo motor)	420kg
