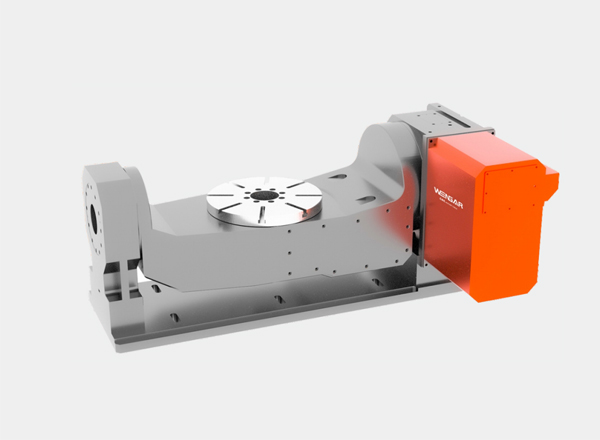

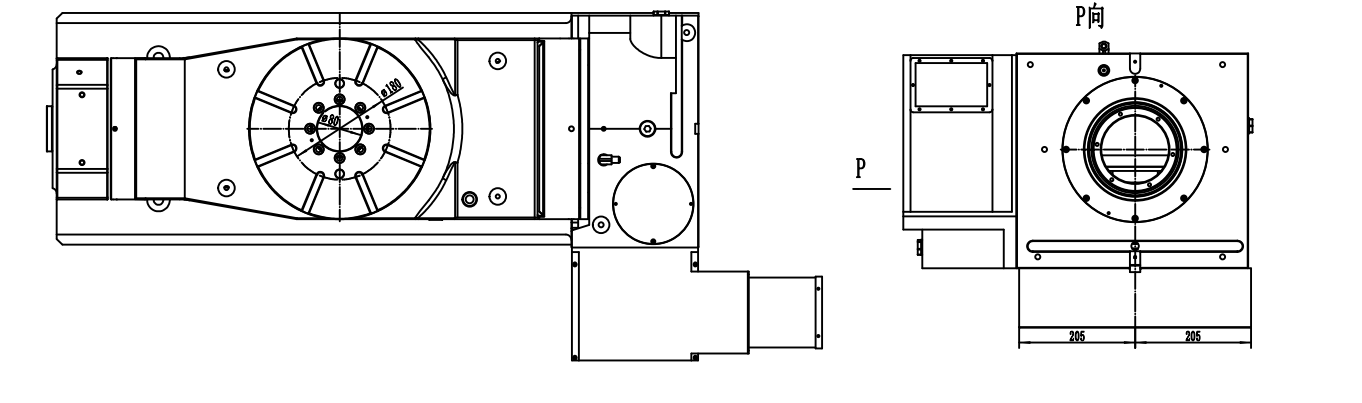

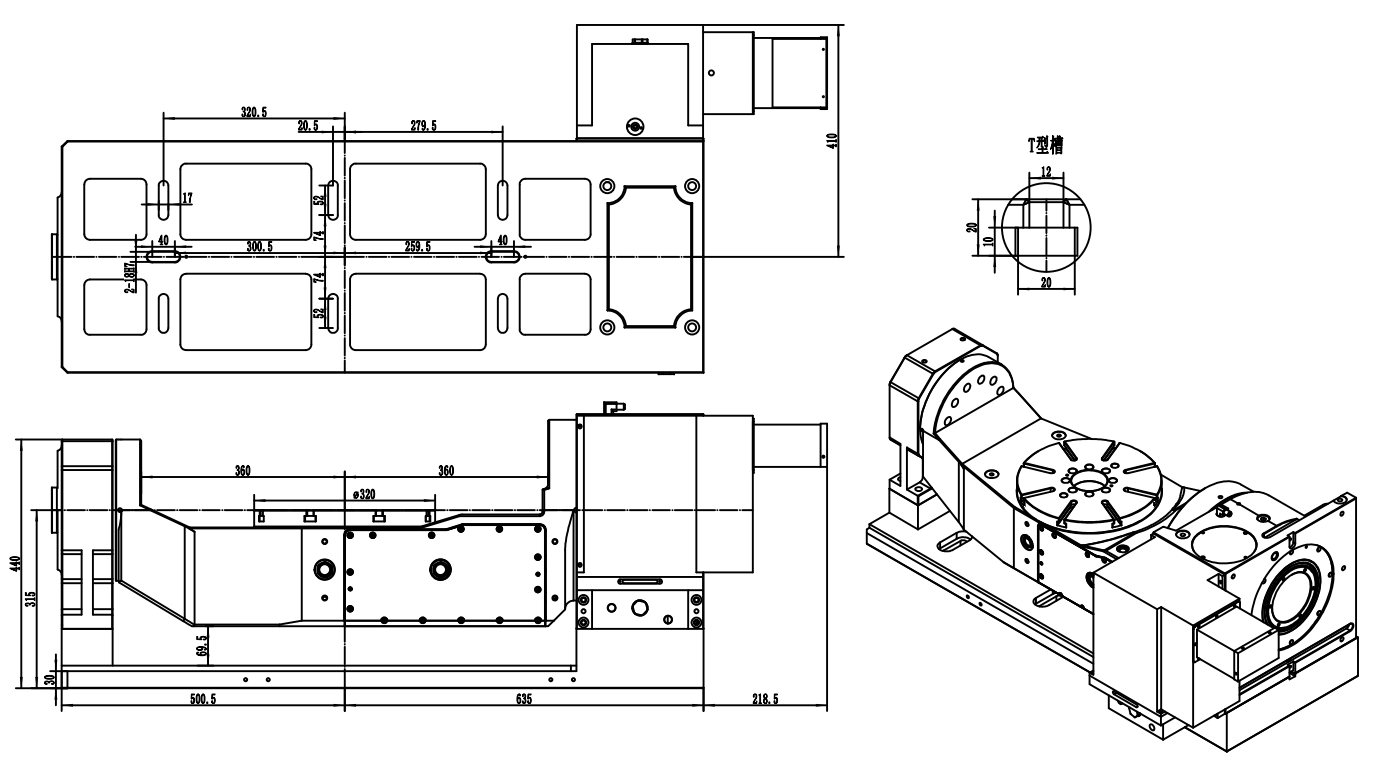

规格\型号 Specification and model	GTR-320L
整机重量(不含电机) Whole machine weight (excluding motor)	740kg
允许工件重量(竖直) Allow workpiece weight (vertical)	140kg
允许工件重量(水平) Allow workpiece weight (horizontal)	240kg
允许切削扭力Allow cutting torque	80kgf.m
倾斜轴油压刹车扭力 Tilt axis hydraulic brake torque	120kgf.m
旋转轴油压刹车扭力 Rotating shaft hydraulic brake torque	100kgf.m
减速比 total reduction ratio	旋转轴rotation axis 120
	倾斜轴 tilt axis 60
电机 electrical machinery	A轴：β12/HG154S/根据用户系统 According to the user system
	C轴：β8/HG154S/根据用户系统 According to the user system
传动方式 Transmission mode	旋转轴：滚子凸轮 roller cam 倾斜轴：蜗轮蜗杆 worm gear and worm
倾斜角度 Tilt angle	±120°
重复精度 Repetitive accuracy	倾斜轴 tilt axis 6 /旋转轴rotation axis 6
分度精度 Indexing accuracyy	倾斜轴 tilt axis 15 /旋转轴rotation axis 35
最小设定单位 Minimum setting unit	0.001°
T型槽尺寸 T-shaped slot size	12H7mm
工作台直径 Workbench diameter	Φ320mm

加工直径Processing diameter	700mm
中心高度 Height	310mm
