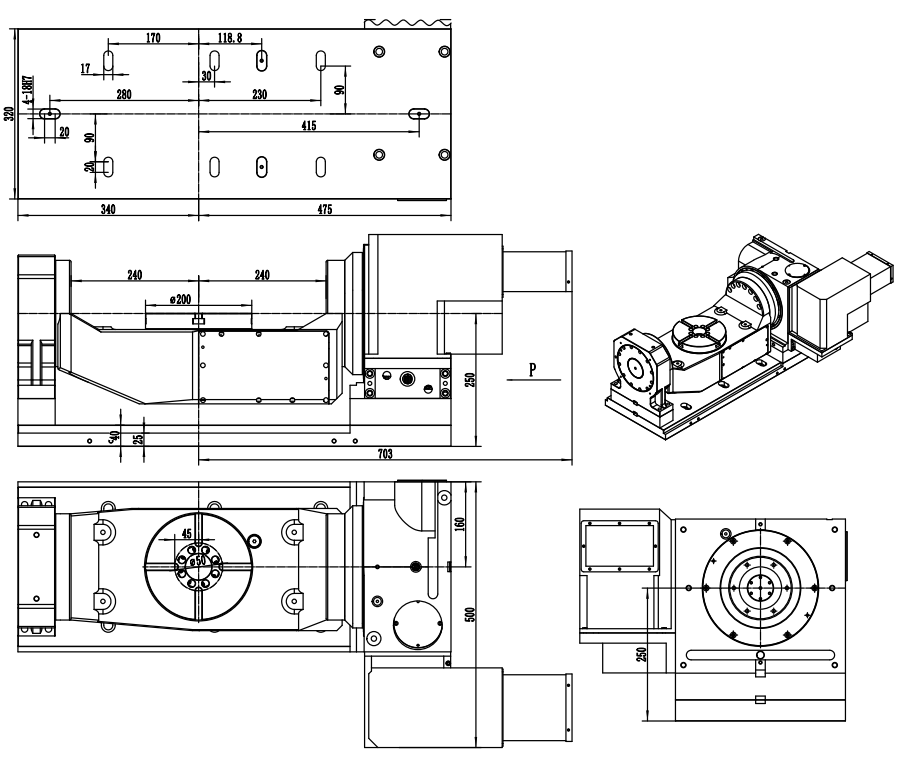

| 规格\型号 Specification and model | GTR-210L | |||
| 整机重量(不含电机) Whole machine weight (excluding motor) | 330kg | |||
| 允许工件重量(竖直) Allow workpiece weight (vertical) | 85kg | |||
| 允许工件重量(水平) Allow workpiece weight (horizontal) | 130kg | |||
| 允许切削扭力Allow cutting torque | 30kgf.m | |||
| 倾斜轴油压刹车扭力 Tilt axis hydraulic brake torque | 70kgf.m | |||
| 旋转轴油压刹车扭力 Rotating shaft hydraulic brake torque | 50kgf.m | |||
| 减速比 total reduction ratio | 旋转轴rotation axis 45 | |||
| 倾斜轴 tilt axis 120 | ||||
| 电机 electrical machinery | A轴：β8/HG104S/根据用户系统 According to the user system | |||
C轴：β4/HG105S/根据用户系统 According to the user system | ||||
| 传动方式 Transmission mode | 旋转轴：滚子凸轮 roller cam 倾斜轴：蜗轮蜗杆 worm gear and worm | |||
| 倾斜角度 Tilt angle | ±120° | |||
| 重复精度 Repetitive accuracy | 倾斜轴 tilt axis 15 /旋转轴rotation axis 25 | |||
| 分度精度 Indexing accuracyy | 倾斜轴 tilt axis 4 /旋转轴rotation axis 4 | |||
| 最小设定单位 Minimum setting unit | 0.001° | |||
| T型槽尺寸 T-shaped slot size | 12H7mm | |||
| 工作台直径 Workbench diameter | Φ200mm | |||
| 加工直径Processing diameter | 480mm | |||
| 中心高度 Height | 250mm | |||
